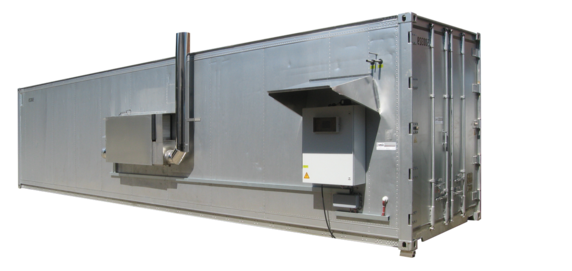

Air Classic Firewood Drying Container Kiln

Whether 25 cm, 33 cm, 50 cm or 1 m logs, whether bulk in wire baskets or stacked  logs we offer solutions for all customer requirements and a energy efficient drying of the firewood.

  • Compact, effective, economical
  • Short drying times
  • Even drying
  • High energy efficiency through heat recovery

Firewood drying for bulk firewood in boxes with grating floor Type BTC

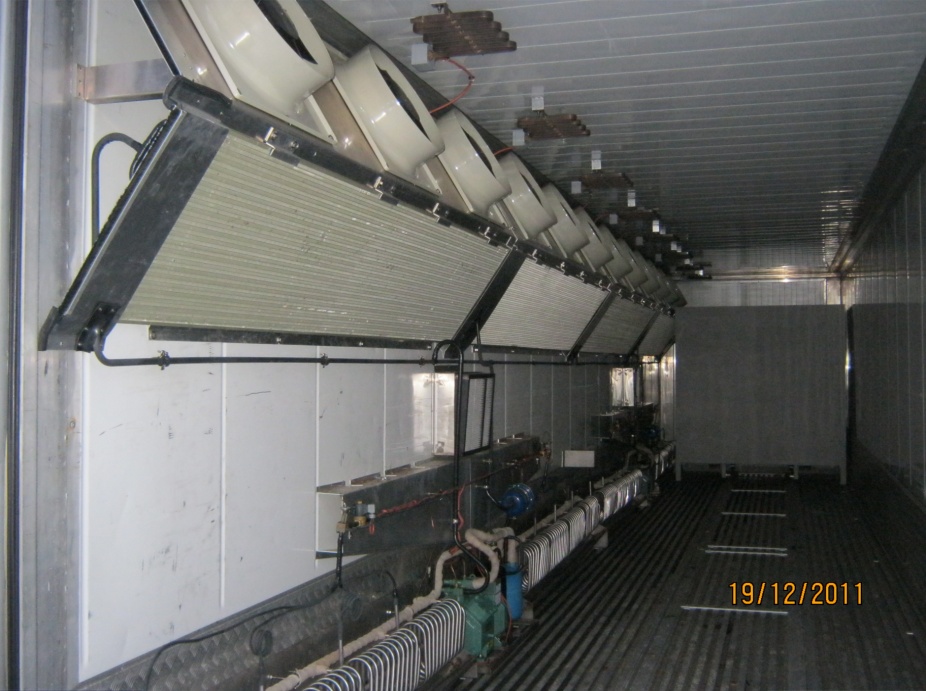

The fans press the air over the heating to the top. The firewood in the boxes are evenly ventilated from top to the bottom. In a counterflow heat exchanger the warm and humid exhaust air heats very effective the fresh incoming air which cut down the heating costs.

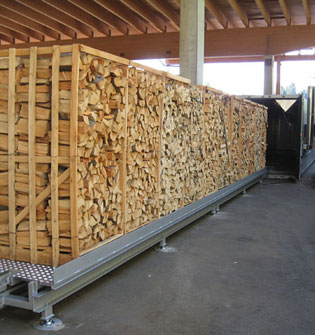

Firewood drying for stacked firewood Type BTC/Z

Stacked firewood can’t be easily ventilated, therefor an exact air flow is necessary to avoid mould formation through build-up of moisture.

Firewood Drying Container Kiln with heat pump Type BTC6WP and BTC12WP

  • No heating connection necessary
  • Very economical through heat recovery
  • Only electrical power connection required, thus giving complete flexibility in choice of location
  • Efficient drying up to 70 °C
  • Very high condensation power
  • Friendly electricity price through heat pump rate
  • 50 % energy saving

Air Classic Firewood Drying Container Kiln

Technical Data Type BTC6 BTC12 BTC6Z BTC12Z BTC6WP BTC12WP
Stack room length m 4.80 11.67 5.60 11.70 4.80 11.67
Stack room width m 2.20 1.88 1.00 1.00 2.20 1.88
Stack room height m 1.60 1.81 2.00 2.00 1.60 1.81
Stack room gross capacity LCM 16.90 38.40 - - 16.90 38.40
Stack room gross capacity stert - - 10.00 22.00 - -
El. power supply with E-Htg. kW 27.70 54.30 27.70 54.30 27.70 54.30
El. average consumption with E-Htg. kW 15.00 30.00 15.00 30.00 8.00 16.00
El. average consumption with E-Htg and heat recovery kW 13.50 27.00 13.50 27.00 8.00 16.00
El. power supply with HW-Htg kW 3.70 6.90 3.70 6.90 - -
El. average consuption with HW-Htg kW 3.20 6.40 3.20 6.40 - -
HW-Htg power supply kW 25.00 50.00 25.00 50.00 - -
HW-Htg average consumption kW 16.00 31.00 16.00 31.00 - -

Operation

Simple, intuitive, quick

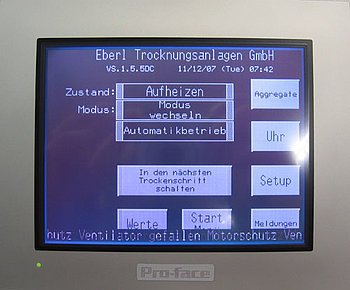

On our user-friendly touch panel, simply enter the wood type, wood thickness and the desired final moisture content.
After that, all you have to do is press the start button, and the kiln will take care of the rest by itself.

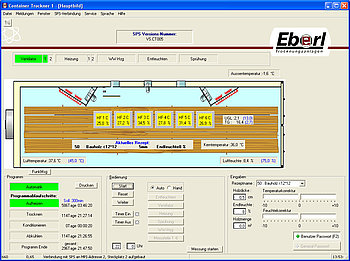

In order to facilitate your daily work with our kilns, we offer a visualisation program. With this you can comfortably monitor and control your kiln from your office computer. The simple interface allows you to enter all relevant data and settings as well as saving and printing logs or diagrams of the drying process. It is even possible to remotely control your kiln using your smartphone.

Container kiln brochure

You can find Detailed information in   our container kiln brochure as PDF-Download.

Quick request for Air Classic Firewood Drying Container Kiln

Our practical inquiry form will lead you quickly to all answers.



Now for the form

Request form Air Classic Firewood Drying Container

Air Classic Firewood Drying Container
