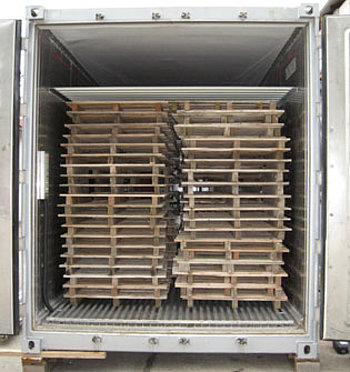

Air Classic Heat Treatment Container Kiln

The excellent but low-budget Heat Treatment Container Kilns

The compact and newly overhauled or completely new insulated containers are outstandingly suitable for being used as heat treatment kilns. The inside walls are made of stainless steel or aluminium and they as well as the robust base have good insulation properties. In the factory, they will be equipped with high-quality components like fans, heaters and climate measurement.
The control unit, the drying schedules and our experience as kiln producer make the simple containers excellent but low-budget heat treatment kilns which we perfectly adapt to customer requirements.

  • Fast and uniform drying
  • Cost-saving and economic
  • Easy installation
  • Very good insulation
  • Easy control
  • Solutions adapted to customer requirements
  • Front- and track loading

Front loading

  • No track necessary
  • Space saving

Air Classic Heat Treatment Container Kiln

Technical data Typ HC6 HC12
Stack room length m 5.55 11.60
Stack room width m 1.25 1.25
Stack room height m 2.00 2.30
Stack room gross capacity 13.90 31.90
Total length incl. track m 13.00 25.00
El. power supply with E-Htg kW 19.60 38.20
El. average consumption with E-Htg kW 17.00 34.00
El. power supply with HW-Htg kW 3.60 6.20
El. average consumption with HW-Htg kW 2.50 4.50
HW-Htg system power supply kW 25.00 50.00
HW-Htg average consumption kW 20.00 40.00

The drying process

After loading the wood by means of track car, the drying process can be started. Laterally mounted fans press the air through hot water heaters or electric heaters and evenly distribute the air over the entire kiln length. The batch will be heated until the heat treatment requirements are met.The entire process is logged automatically.

Standard sizes are:

  • 6 m container 6.1 m x 2.4 m x 2.6 m (LxWxH)
  • 12 m container 12.2 m x 2.4 m x 2.9 m (LxWxH)
  • Special dimensions are possible at any time

Operation

Simple, intuitive, quick

On our user-friendly touch panel, simply enter the wood type, wood thickness and the desired final moisture content.
After that, all you have to do is press the start button, and the kiln will take care of the rest by itself.
In order to facilitate your daily work with our kilns, we offer a visualisation program. With this you can comfortably monitor and control your kiln from your office computer. The simple interface allows you to enter all relevant data and settings as well as saving and printing logs or diagrams of the drying process. It is even possible to remotely control your kiln using your smartphone.

Container kiln brochure

You can find Detailed information in   our container kiln brochure as PDF-Download.
