Air Classic Drying Container Kiln with heat pump

The excellent but low-budget Heat Treatment Container Kilns with heat pump.

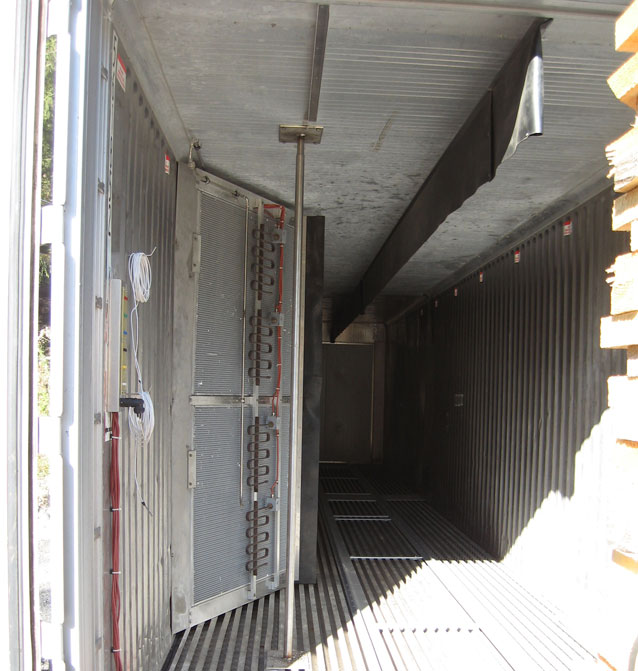

The compact and newly overhauled or completely new insulated containers are outstandingly suitable for being used as drying kilns. The inside walls are made of stainless steel or aluminium and they as well as the robust base have good insulation properties. In the factory, they will be equipped with high-quality components like heat pump, fans, heaters, spraying unit, exhaust fan and inlet flaps as well as climate and wood moisture content measurement.
The control unit, the drying schedules and our experience as kiln producer make the simple containers excellent but low-budget drying kilns which we perfectly adapt to customer requirements.

  • Fast and uniform drying
  • Cost-saving and economic
  • Easy installation
  • Very good insulation
  • Easy control
  • Solutions adapted to customer requirements
  • Front- and track loading

    Advantages of the heat pump

    • No heating connection necessary
    • Very economic due to heat recovery
    • Only electric power connection required, thus giving complete flexibility in site selection
    • Efficient drying up to 70°C
    • Very high condensation power
    • Favourable electricity price due to heat pump rate
    • 50% energy saving

    Front loading

    • No track necessary
    • Space saving

    Air Classic Drying Container Kiln with heat pump

    Technical dataTypeTC6WPTC12WP
    Stackroom Lengthm5.5511.60
    Stackroom Widthm1.251.25
    Stackroom Heightm2.002.30
    Stackroom gross capacity13.9031.90
    Total length incl. trackm13.0025.00
    El. power supply.kW20.2036.00
    El. average consumption.kW6.5013.00
    El. averatge consumption w. heat recoverykW4.509.00

    The drying process

    After loading the wood the drying process can be started. Lateral mounted fans press the air through hot water heater or el. Heater and distribute the air equally over the complete kiln length. Due to air exchange by exhaust fan and air inlet flaps the drying climate can be exact controlled.
    Also a counterflow heat exchanger can be used.  In it the warm and humid air exhaust air heats very effective the fresh incoming air. This conventional drying kilns are characterised by fastness, equability and economy.

    Standard sizes are:

    • 6m container 6.1m x 2.4m x 2.6m (LxWxH)
    • 12m container 12.2m x 2.4m x 2.9m (LxWxH)
    • Special sizes are anytime possible

    Operation

    Simple, intuitive, quick

    On our user-friendly touch panel, simply enter the wood type, wood thickness and the desired final moisture content.
    After that, all you have to do is press the start button, and the kiln will take care of the rest by itself.
    In order to facilitate your daily work with our kilns, we offer a visualisation program. With this you can comfortably monitor and control your kiln from your office computer. The simple interface allows you to enter all relevant data and settings as well as saving and printing logs or diagrams of the drying process. It is even possible to remotely control your kiln using your smartphone.

    Container kiln brochure

    You can find Detailed information in   our container kiln brochure as PDF-Download.
